Description

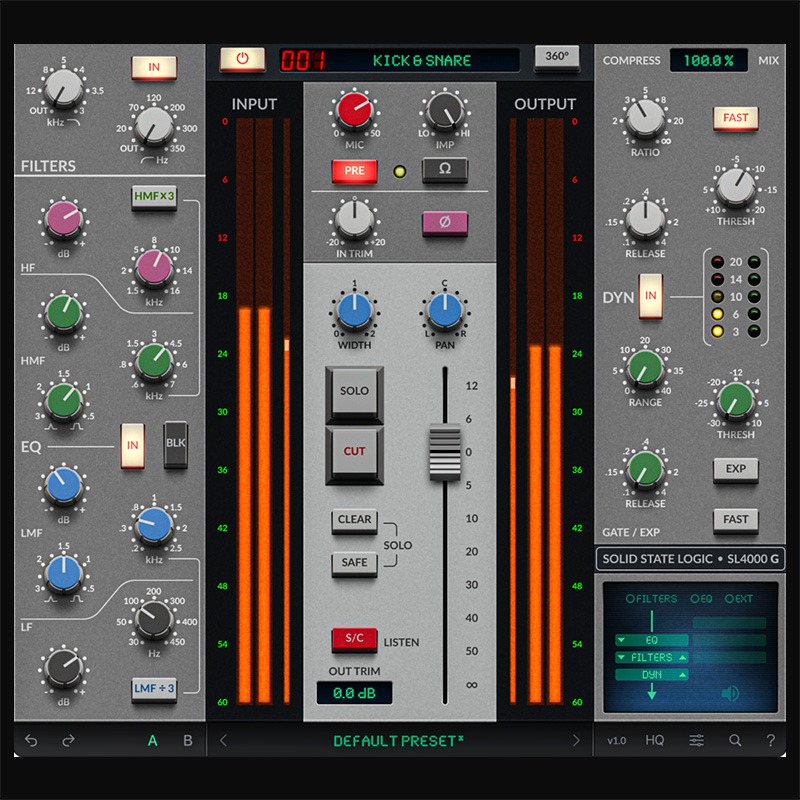

SSL 4K G Channel Strip
From Olympic Studios in London to the Record Plant in LA, SSL 4000 G consoles quickly became the new staple in studios worldwide. Its unparalleled sonic character and incredible versatility transcended genres, shaping countless chart-topping hits across pop, rock, and hip-hop. Renowned engineers and producers like Spike Stent, Bob Rock, Dr Dre, and MixedByAli all crafted timeless records on the SL 4000 G.
Defining Sounds of a Generation
The SSL 4K G plug-in by Solid State Logic is the definitive emulation of the SSL 4000 G channel strip, created by its original designers to authentically recreate the sound of a generation. Offering detailed circuit modelling down to the component level of the revered Pink ‘292’ and Black ‘242’ EQ flavours, alongside the tighter and more refined sounding dynamics section, 4K G lets you tap into the iconic sound behind some of the greatest records of all time.
- Choose between 4000 G-Series Pink 292 and Black 242 EQ flavours.
- Expertly modelled G-Series Dynamics, for that signature G-Series punch and control
- Creative saturation and tone shaping via the mic amp, impedance control and output VCA modelling
- First-class integration with UC1/UF8/UF1 via SSL 360° and the Plug-in Mixer
- ‘HQ’ mode for intelligent oversampling
The SL 4000 G-series console
Expanding on the SL 4000 E’s legacy, the SL 4000 G console emerged in 1987 as the pinnacle of the 4000 series and the final chapter in the 4000 B, E, and G trilogy. While the E Series had established a reputation for bold, aggressive tones, many studio professionals desired a smoother, more refined sound. In response, Solid State Logic introduced the SL 4000 G. This console brought groundbreaking innovation, including redesigned microphone preamps, the Pink Knob ‘292’ EQ, and refined dynamics section, resulting in the console offering a more ‘polished’ sound than the previous grit of the E Series.
Analogue modelling
The 4K G plug-in lives up to the legend of the 4000G, imparting all the vibe and rich non-linear analogue character of the console itself. The plug-in is a precise emulation, with detailed component-level modelling and an intricate capture of the original circuit schematics. Highlights include the hyper-realistic emulation of the revered Pink ‘292’ and Black ‘242’ EQ flavours, alongside the tighter and more refined sounding G Series dynamics section. 4K G also incorporates output fader VCA modelling, adding rich layers of harmonic saturation throughout the channel strip.

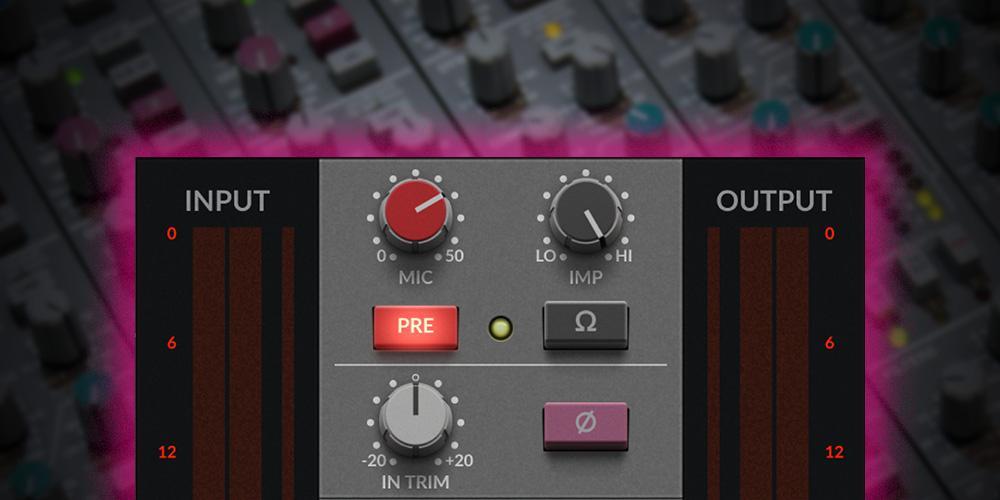

Jensen JT-115K-E Transformer Mic Pre & Impedance Control
Featuring the option to engage the classic 4000 E Series Jensen transformer-modelled mic preamp with its adjustable saturation, 4K G also includes the Variable Mic Input Impedance control, taken from the FX383 G Series outboard unit. Used in conjunction with the Mic Input saturation, the variable impedance control opens up bountiful creative tone shaping options, perfect for lo-fi drum crunching, for example.

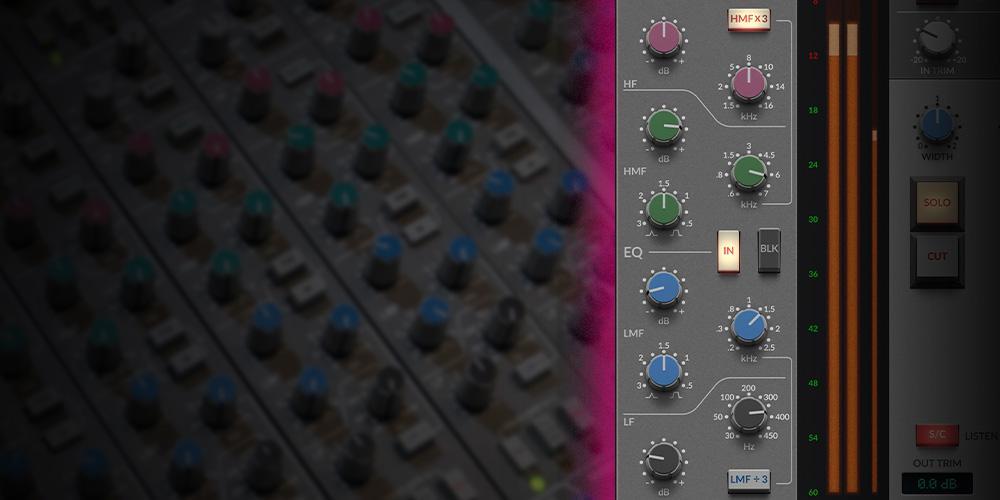

Ultra-smooth and polished EQ character
4K G stands apart from its counterparts thanks to its revised and expanded tone-shaping capabilities. 4K G features the distinctive HMF ×3 and LMF ÷3 selector switches from the iconic ‘292’ EQ. These switches allow the HMF and LMF bands to be shifted to the outer extremes of the frequency spectrum, enabling the creation of unique and expressive EQ curves. This flexibility lets you sculpt bell curves with either wide or narrow Q settings in the low and high frequency regions, in addition to the standard LF and HF shelf controls. The ‘292’ EQ itself employs a variable Q design, meaning that smaller boosts or cuts naturally result in broader curves.

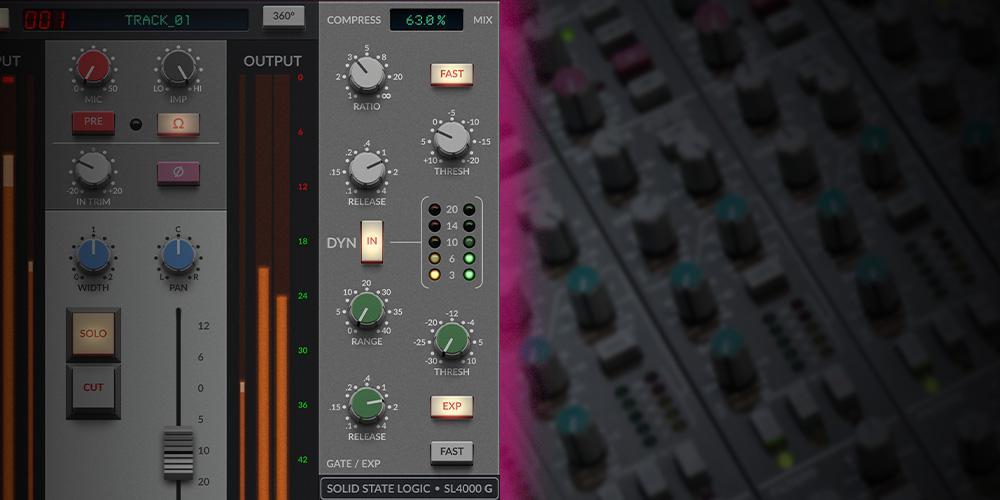

Meticulous modelling of the 4000 G dynamics section
By the time the SL 4000 G console was released, the channel dynamics had undergone many incremental circuit revisions over the 4000-series era. From the aggressive sound of the 4000 B to the much loved ‘pop’ of the 4000 E. The 4000 G provided a refined tightness to its compression characteristic, which proved invaluable in the creation of evermore elaborate and dense mixes. That same precision makes the 4K G dynamics just as impactful in today’s complex productions.

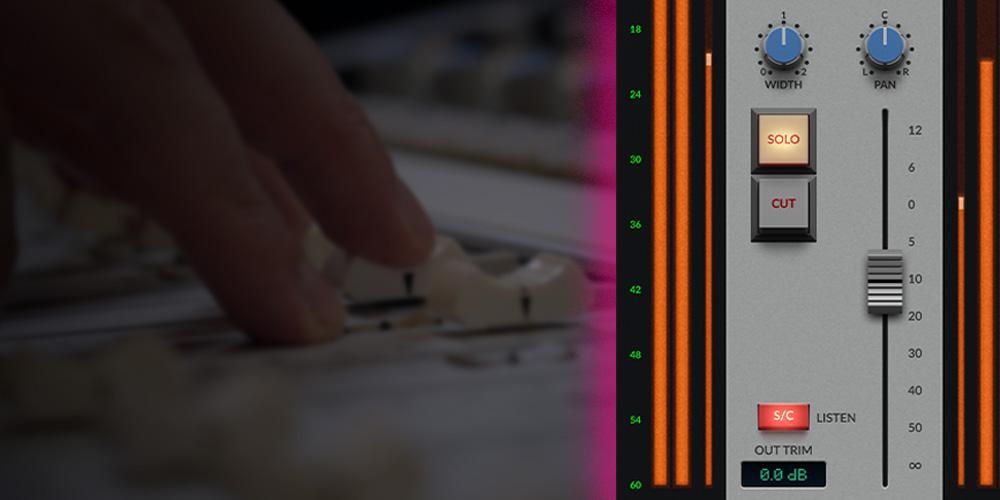

Modelled THAT 2002T ‘Blue Can’ VCA fader
The 4K G features output fader VCA modeling, delivering added harmonic energy at the final stage of the signal path. It emulates the later THAT 2002T ‘Blue Can’ VCA, which – while cleaner than earlier VCA designs, still imparts a distinct and characterful dose of harmonic distortion to the signal.

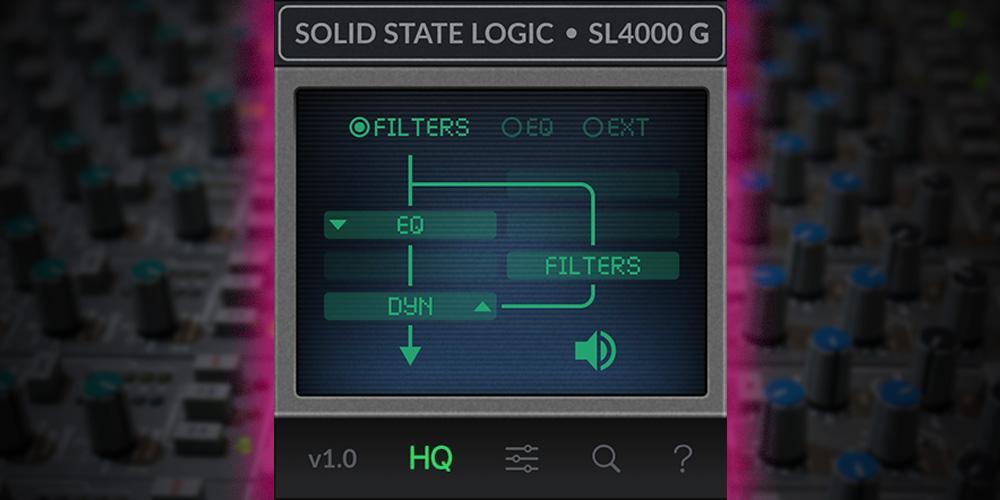

HQ mode for enhanced processing and oversampling
Use the High Quality (HQ) mode to turn on intelligent oversampling under the hood – applying the minimum amount of oversampling necessary for a closer approximation of a continuous analogue signal.

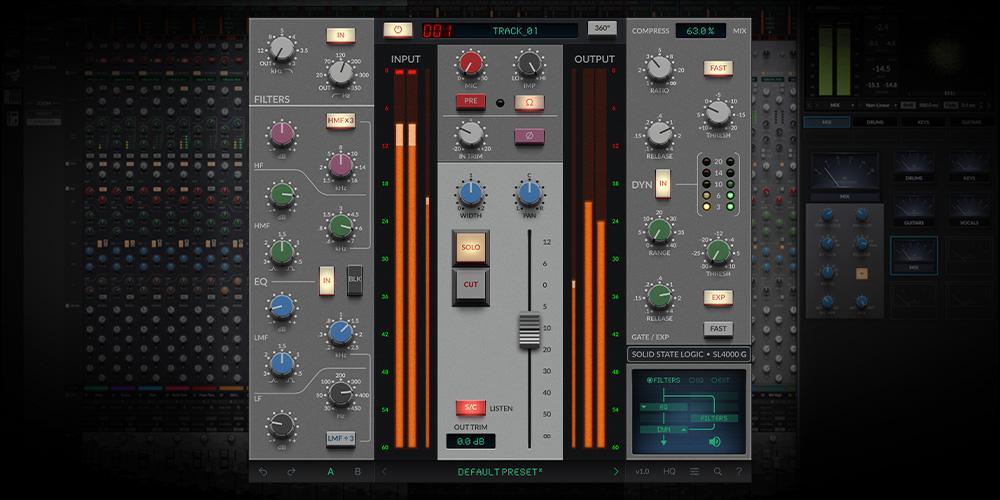

Total control from the SSL 360° Plug-in Mixer

Mix ‘n’ match SSL channel strip plug-ins and control them all from the SSL 360° Plug-in Mixer – your virtual SSL console – including first-class integration with the SSL UC1, UF8 and UF1 controllers for hands-on control.
